See the Evaluation Walkthrough for a hands-on, step-by-step guide through the evaluation pipeline.

Workshop: Evaluating Models on the Laos Dengue Dataset

In this hands-on exercise you will download a real dataset, run two different models through the Chap evaluation pipeline, and compare the results.

1. Download the dataset

Create a working directory and download the Laos dengue dataset (monthly, admin-1 level):

$ mkdir laos-workshop && cd laos-workshop
$ curl -sL -o chap_LAO_admin1_monthly.csv \
    "https://raw.githubusercontent.com/dhis2/climate-health-data/main/lao/chap_LAO_admin1_monthly.csv"

The CSV contains ~2800 rows covering 18 provinces from 1998-2010 with columns: time_period, location, disease_cases, population, location_name, rainfall, mean_temperature, mean_relative_humidity.

2. Explore the dataset

$ chap plot-dataset chap_LAO_admin1_monthly.csv

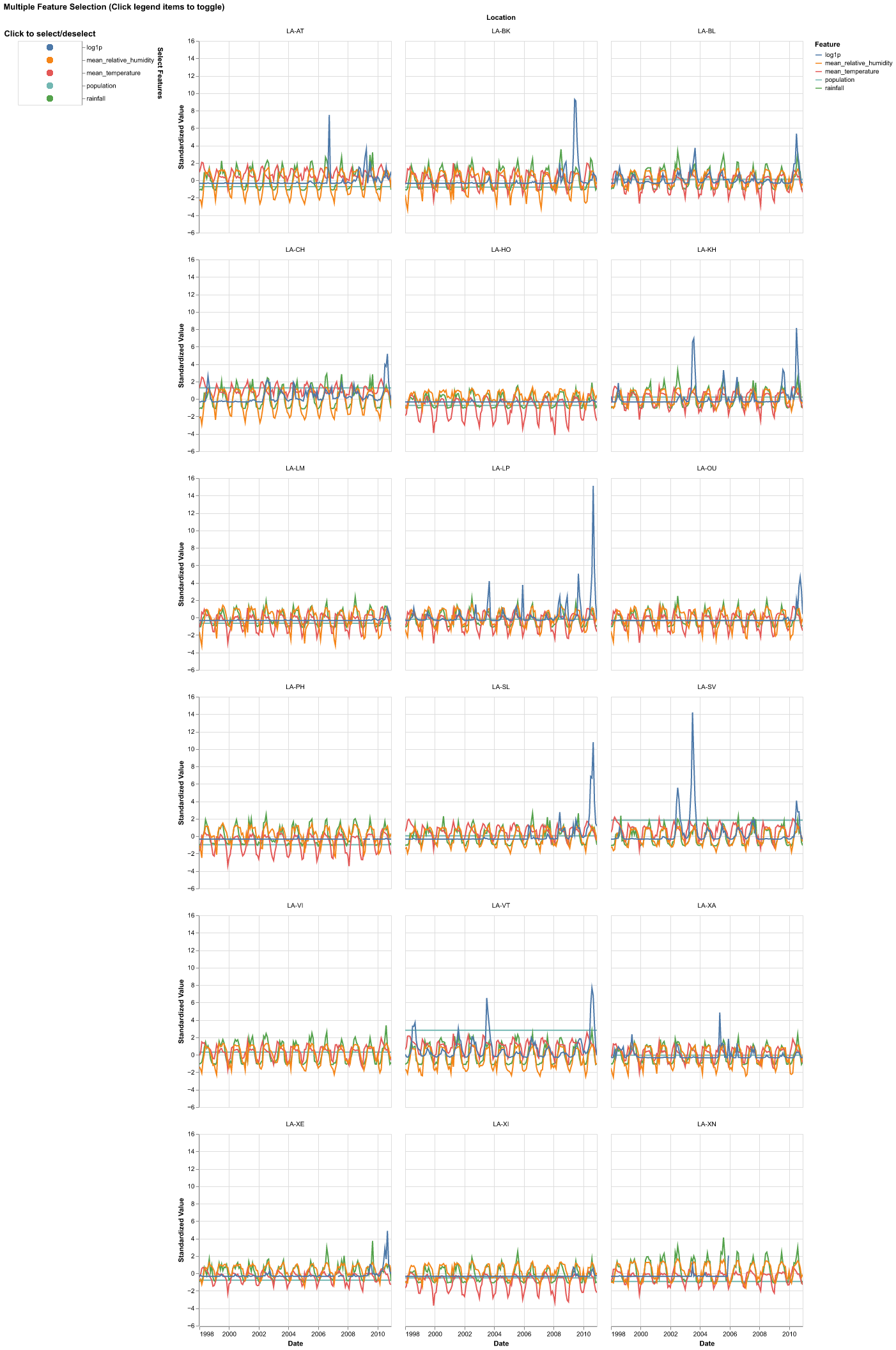

This opens an interactive plot in your browser showing standardized disease cases and climate features across all locations:

3. Evaluate Model A -- Minimalist baseline

Run a backtest with 2 train/test splits and a 3-month forecast horizon using a simple baseline model:

$ chap eval https://github.com/knutdrand/minimalist_example_uv \
    chap_LAO_admin1_monthly.csv \
    minimalist_eval.nc \
    --backtest-params.n-splits 2 \
    --backtest-params.n-periods 3

Generate the evaluation plot:

$ chap plot-backtest minimalist_eval.nc minimalist_evaluation_plot.png --plot-type evaluation_plot

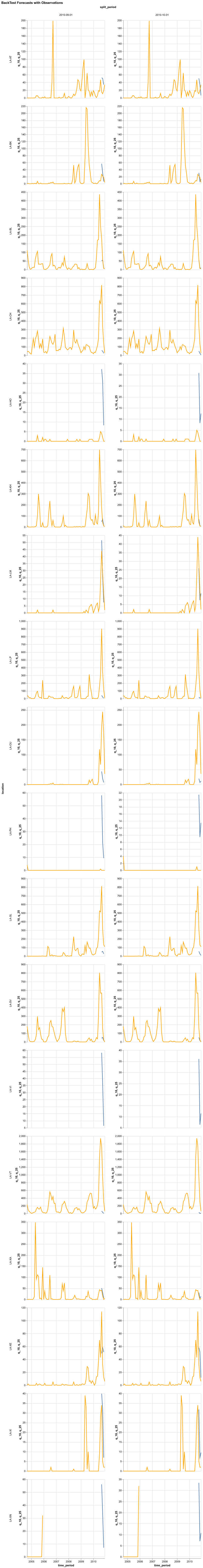

Evaluation plot -- observed vs. predicted cases per location and split:

4. Evaluate Model B -- Auto-EWARS

Now evaluate a more sophisticated model. The EWARS model is fetched directly from GitHub:

$ chap eval https://github.com/dhis2-chap/chap_auto_ewars \
    chap_LAO_admin1_monthly.csv \
    ewars_eval.nc \
    --backtest-params.n-splits 2 \
    --backtest-params.n-periods 3

Generate the evaluation plot:

$ chap plot-backtest ewars_eval.nc ewars_evaluation_plot.png --plot-type evaluation_plot

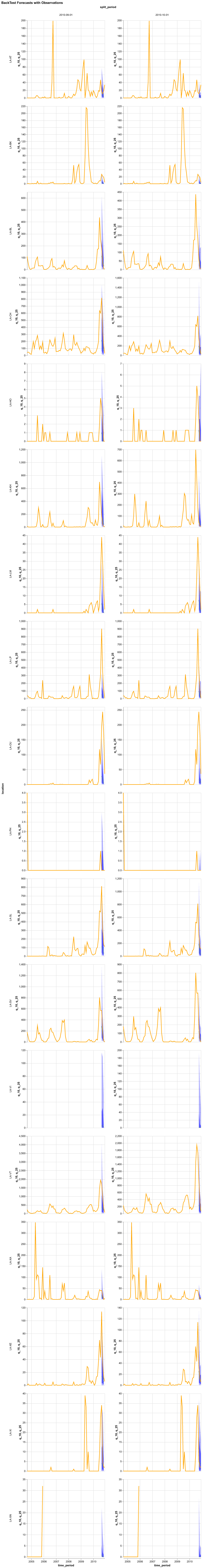

Evaluation plot:

5. Compare models

Export aggregate metrics from both evaluations into a single CSV:

$ chap export-metrics \
    --input-files minimalist_eval.nc \
    --input-files ewars_eval.nc \
    --output-file metrics_comparison.csv

The output CSV contains one row per model with columns for each metric:

model	mae	rmse	crps	coverage_10_90
minimalist_example_uv	124.6	282.1	124.6	0.0
chap_auto_ewars	97.8	227.4	67.2	0.781

Lower MAE, RMSE, and CRPS indicate better accuracy. Coverage_10_90 measures how often the true value falls within the 10th-90th percentile prediction interval (ideal: 0.80).

In this comparison, the EWARS model outperforms the minimalist baseline across all metrics.
